Fully Automatic Disinfection and Sorting Line

• Difficult recycling and washing – mixed tableware types require manual pre-sorting.

• Labor shortages – recruiting and training dishwashing staff becomes harder each year.

• Sewage discharge – inconsistent washing leads to excess water and chemical waste.

• Slow turnover – bottlenecks at the washing station delay meal cycles.

• Poor hygiene control – manual handling increases cross-contamination risks.

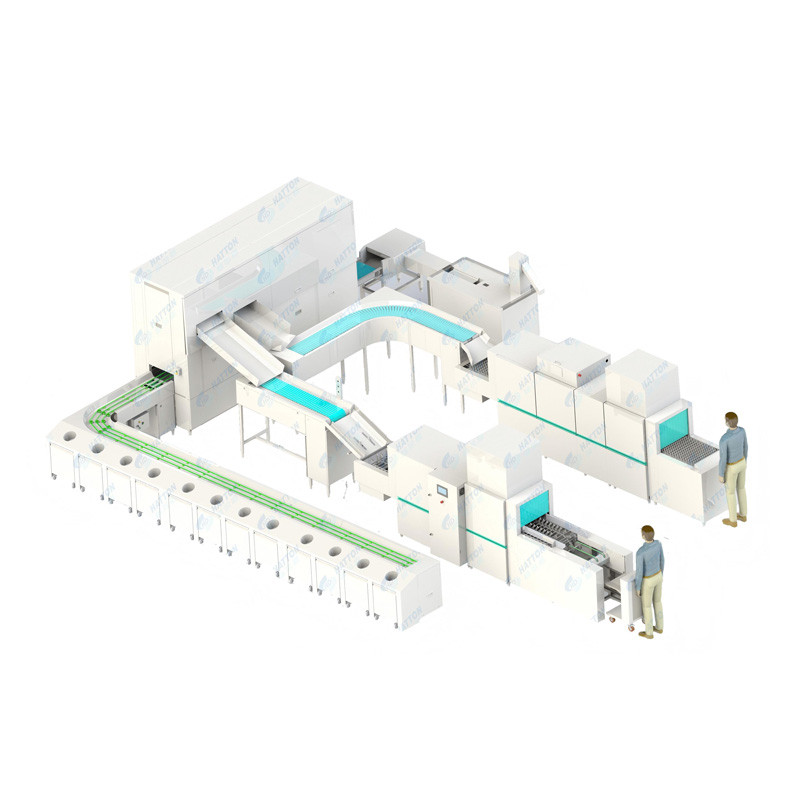

A‍‌‍‍‌ fully automatic dishwasher system overcomes difficulties of recycling, washing, labor supply, sewage discharge, and turnover that result from centralized dining facilities. Labor expenses are also cut down, areas meant for hygiene and dishwashing become sanitary without the dirt and mess, and the act of dishwashing itself is made much easier, thereby leading to rapid dish sorting.

fully automated dish washer

fully automated dish washer

1. Size	Customizable
   Capacity	≥350 liters
   Material	Stainless steel
   Certificate	RoHS, ISO9001, CQC, and HACCP certifications
   Warranty Period	One  year
   Shipping packages	Wooden crate packaging
   Speed	5,000–6,000 pieces of tableware washed per hour

2. Advantages of Fully Automatic Dishwasher System

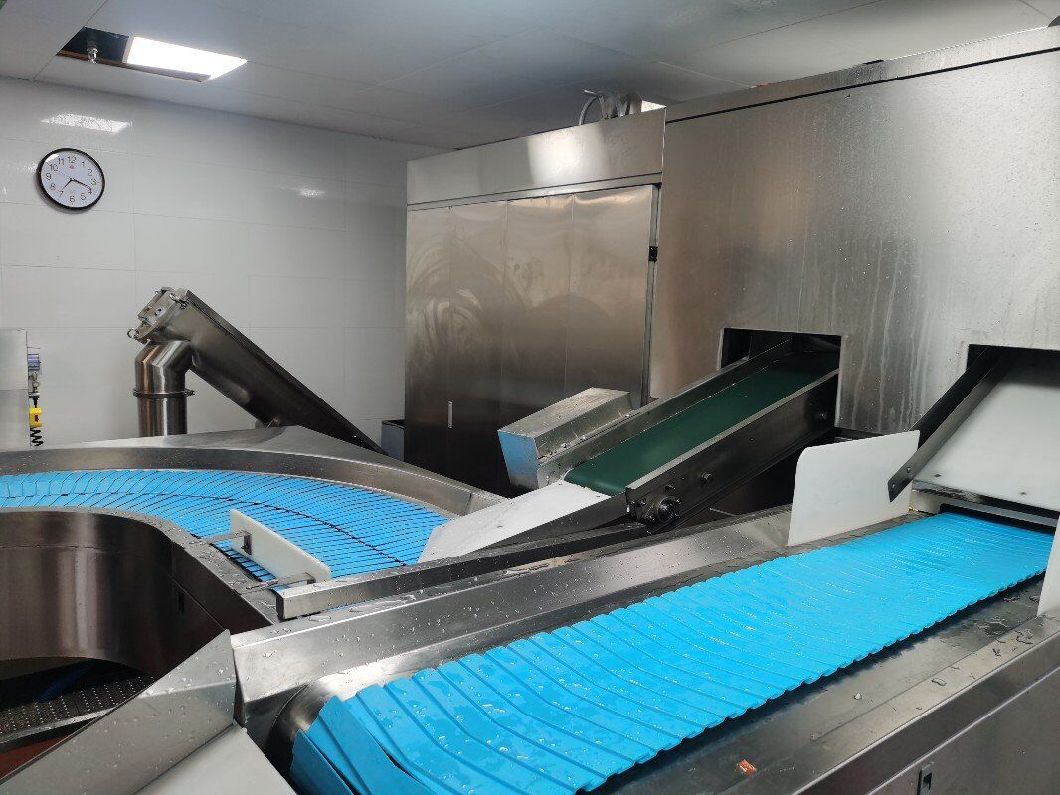

3. Tableware‍‌‍‍‌ Recognition by the Machine – Upon reaching the main conveyor line, where plateware is all mixed (plates, bowls, trays, cutlery), high-tech sensors and computer vision technology work hand in hand to identify each item. This feature eliminates the need for a manual separation stage before sorting.
   Sort at Speed – Utilizing the data from the identification, the system guides every single piece via guided chutes and belt transfers to its washing module, matching the piece. In this targeted way, glassware gets gentle washing, big metal trays are properly handled, and ceramic bowls are washed adequately without causing cracks.
   Integrated Table Cleaning & Disinfection – Wash zones with high-pressure jet arms, detergent injection, and final rinse water hotter than 82°C for effective disinfection are set up separately according to the tableware kinds.
   Drying & Output – A system of dryers operating via hot air makes the tableware either ready for stacking immediately or for direct delivery to the serving lines.
   Self-cleaning Line Flush – To keep the hygiene level high and to ensure no bacteria/scale buildup, the system automatically flushes the internal parts at the end of each work ‍‌‍‍‌shift.
4.

   automatic dishwasher machine



   automatic dishwasher machine

Ideal for a wide range of cleaning industries

Designed for aviation catering organizations

Perfect for central kitchens

Essential for large hotels

Indispensable for food distribution centers

Vital for food processing plants

Schools and hospitals, particularly where high-volume cleaning and thorough disinfection finishing are required

fully automated dish washer

automatic dishwasher machine

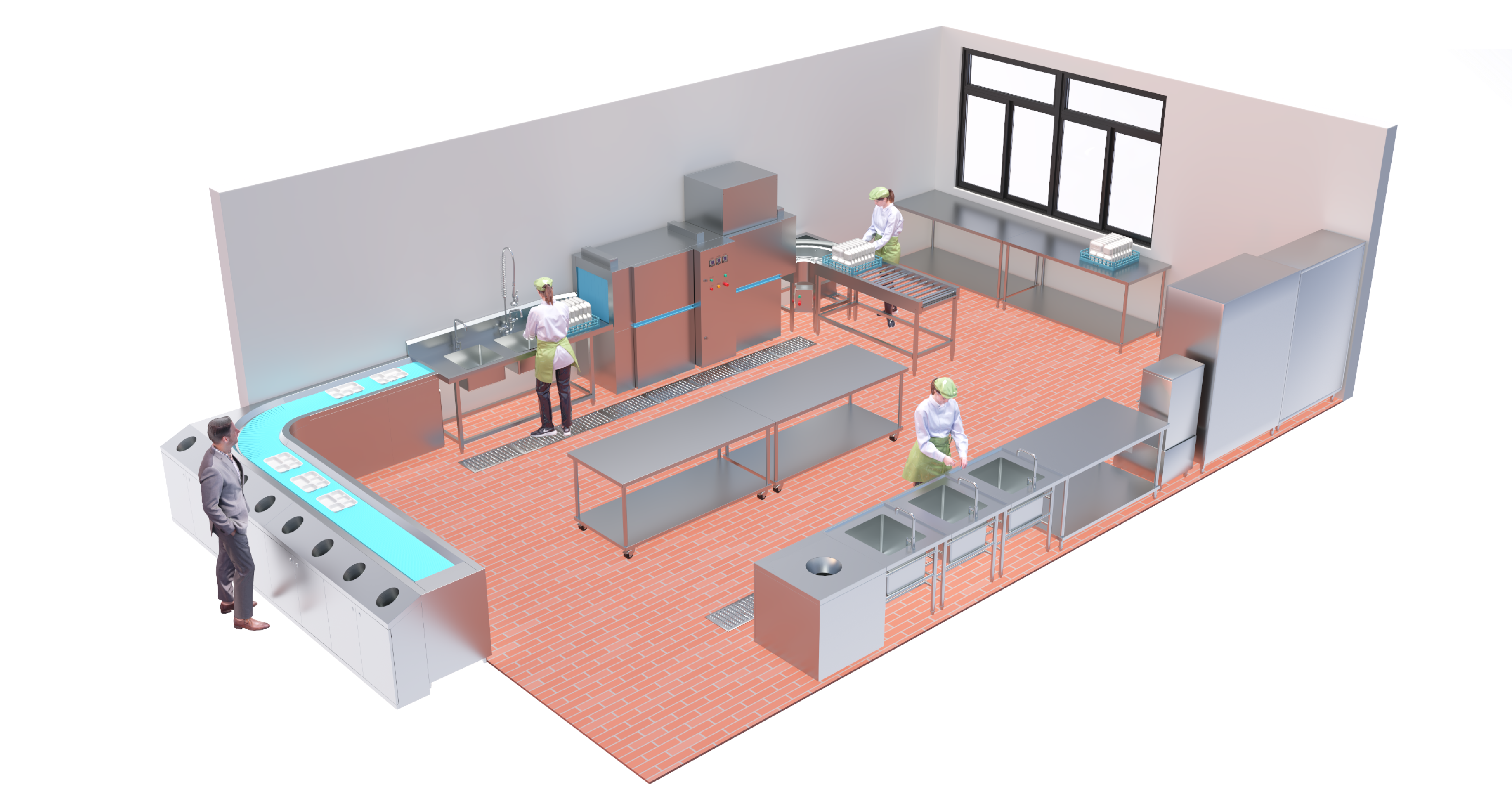

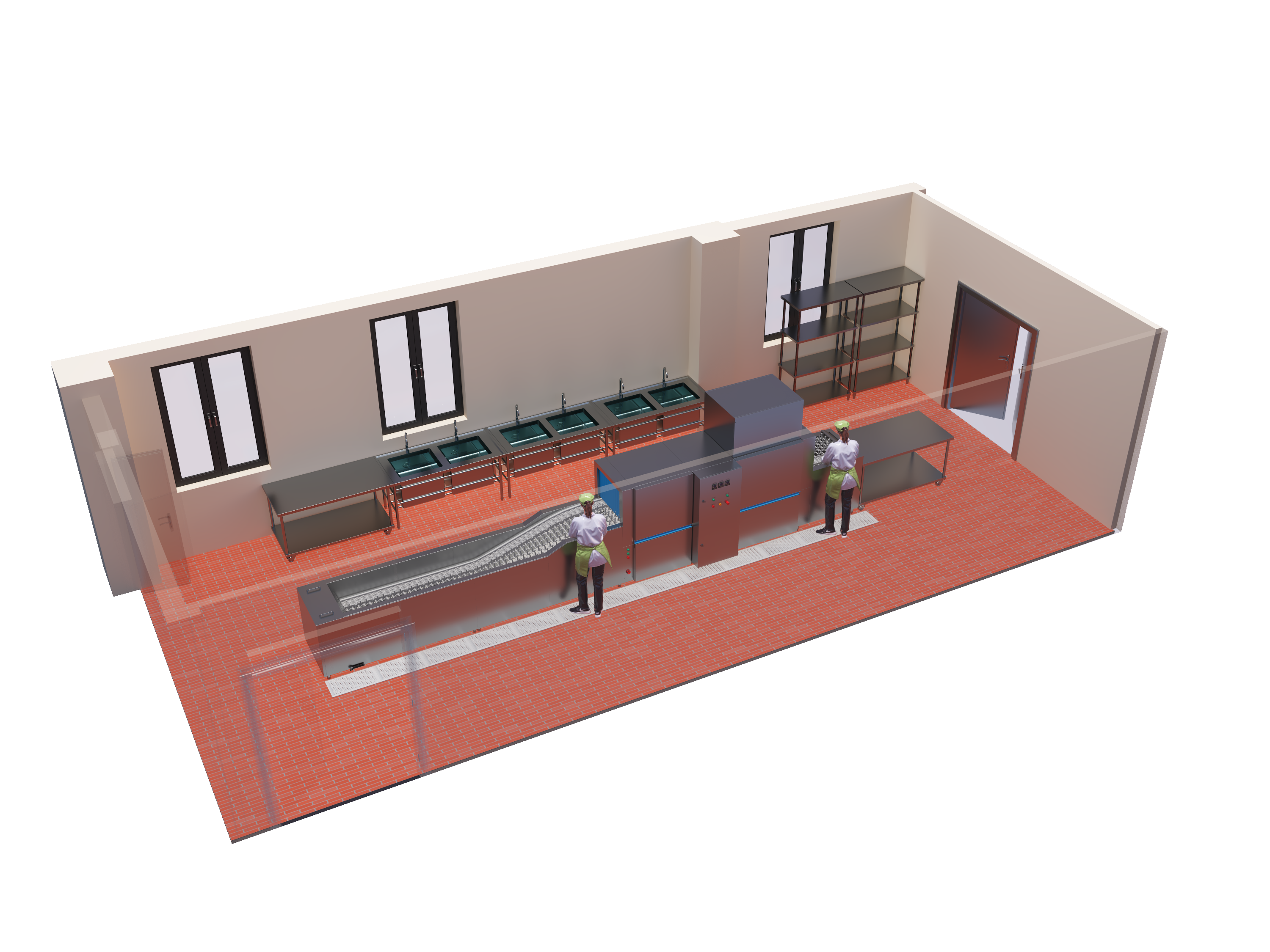

Account for operator standing space (minimum 500mm) and trolley clearance (minimum 700mm) around the dishwasher.

Prioritize operator comfort and workflow efficiency; ensure the inlet and outlet areas are arranged to prevent cross-contamination.

Allow for adequate maintenance access around the dishwasher, ideally 500–600mm.

When selecting a model, verify that the site meets requirements regarding water supply, power/steam connections, drainage points, water quality, and budget.

Consider the type of tableware to determine the loading method (angled insertion vs. flat placement) and the appropriate type of rack or flight-type conveyor fingers.

Select suitable inlet and outlet lengths based on the available space and the volume of meals served.

Soak tableware before it enters the dishwasher; small items such as knives, forks, spoons, and chopsticks can be soaked in small, dedicated containers.

Power Connection: Voltage (e.g., 220V/380V/440V), frequency (50/60Hz), and presence of a neutral wire; reserved length and height for power cabling.

Water Inlet: Inlet temperature 10–50°C; inlet pipe diameter 3/4" (DN20); inlet pressure 0.15–0.4 MPa. Different‍‌‍‍‌ ways to heat include electric heaters and steam boilers. Sometimes, steam boilers are a choice on sites where electrical wiring is too low for the demands of a heating ‍‌‍‍‌system.

Note: The‍‌‍‍‌ selection may be made between the primary steam and the secondary steam (primary steam is the best choice when the pressure of the steam is less than 0.3–0.4 MPa). ‍

dishwasher automatic machine

dishwasher automatic machine

• Small footprint – The modular design allows L-shaped, U-shaped, or straight configurations to fit existing kitchen layouts.

• Quick-connect utility ports – For water, steam, electricity, and drainage, reducing installation time.

• Predictive maintenance alerts – The touch-screen display notifies when spray nozzles need cleaning or belts require tensioning.

• Remote diagnostics – Optional IoT connectivity allows our technicians to troubleshoot software issues without on-site visits.

Interested in a site-specific layout design? Our engineering team offers free workflow analysis and modular configuration proposals. Contact us today to see how our fully automated dish washer line can be tailored to your facility’s unique volume and space constraints.

Established in 2006 and located in Yunlong Town, Yinzhou District, Ningbo City, Zhejiang Province, Zhejiang Hatton Cleaning Technology Co., Ltd. is an innovative technology enterprise integrating R&D, manufacturing, sales, and service. With over 20 years of manufacturing experience, our facility employs 128 staff members—including 21 R&D personnel—and operates 31 production lines, achieving an annual production capacity of 4,600 units.  We are committed to excellence in handwork with a view to meeting the highest level of customer satisfaction through cleaning and disinfecting of tableware. We also supply and design specialized dishwashing equipment such as: commercial dishwashers, under-counter dishwashers, canopy-type dishwashers, conveyor dishwashers, pass-through flatware series, bin washers, garbage disposers, waste reduction systems, and fully automated washing and disinfectant separation conveyor ‍‌‍‍‌lines.

The‍‌‍‍‌ company is dedicated to creating a clean and healthy environment for the consumers. We provide comprehensive tableware cleaning equipment to our clients, who are among the high-end hotels, restaurants, large canteens, and airline catering services. The equipment is of different models, and we are able to match it to the needs of each of our clients regardless of the level at which they would like. Process planning and design solutions are also delivered as part of the service for the supplementary cleaning equipment such as the corner units, the conveyor belts, the disposal cabinets, and the garbage ‍‌‍‍‌disposers.

Our‍‌‍‍‌ products are available in 34 provinces and municipalities throughout China and are shipped worldwide to more than 30 countries. Operating with a national infrastructure including 20 office headquarters and 76 service centres, Hatton Technology is the partner of your choice for top-of-the-range washing machines for flatware that can be easily handled by you. For many years now, Hatton's commitment to quality has led to a multitude of certifications and test reports being obtained for them that are in line with both State and industry ‍‌‍‍‌benchmarks.

These include ISO9001 quality system certification, CQC food-contact safety certification, integrity management system certification, safety test reports for household and similar electrical appliances, after-sales service grade certification, HACCP (Hazard Analysis and Critical Control Points) certification, hygiene test reports, 71°C high-temperature test strip reports, IP69 enclosure protection ratings, as well as multiple patents and software copyrights.

Q1: CAN I MAKE AN ORDER WITH MIXED PRODUCTS?

A: Yes, our MOQ(minimum order quantity)is one piece/set/unit.

Q2: CAN I USE MY LOGO?

A: Yes, we accept customers' logos for OEM orders.

Q3: CAN I CUSTOMIZED THE PRODUCTS?

A: Yes, please contact us for your custom designs.

Q4: HOW ABOUT THE WARRANTY?

A: All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in the guarantee period, our company will maintain them for free.

Q5: HOW CAN I PAY?

A: We accept T/T, L/C or other payment terms. Please inform us of the transfer information or send us the bank bill in time, so that your order can be arranged quickly.

Q6: HOW ABOUT THE LEAD TIME?

A: We need about 15-20 days to prepare products.

Q7: WHAT'S THE BEST PRICE YOU CAN OFFER?

A: The best price depends on the order quantity. please leave us a message with your purchase details, such as quantity, spec etc. We will respond to you as soon as possible within 24 hours.

Q8: CAN NOT FIND YOUR FAVOURITE?

A: We are a professional manufacturer in this industry. we would like to provide a full solution for OEM clients.

Q9. WHAT SHIPPING OPTIONS ARE AVAILABLE?

A. The shipping way is depended on the weight, the packing size, and the shipping time. It is best if the customer has their own shipment forwarder to arrange the shipment of goods; But if not, the customer needs our assistance, we can negotiate competitive prices with the shipping carriers to provide affordable service to our customers, but please pay the shipping fee in advance. In order to avoid accidents that may occur, we recommend that all customers purchase insurance for the goods.

Q10. HOW CAN I BECOME A DISTRIBUTOR FOR YOUR COMPANY?

A. For more information about discounts or dealer policies, please feel free to call or email us.
